Yes—6×9 speakers can fit in a 6×8 location, but only if you confirm the mounting depth and screw pattern match (or you’re willing to use adapter brackets). This guide answers whether the opening size, fitment depth, and wiring clearance in your 6×8 spot will let a 6×9 install cleanly. You’ll also get the best options when they don’t: adapters, mounting rings, or choosing true 6×8 replacements.
A 6×9 speaker can fit a 6×8 space only if you address the size mismatch with adapters/brackets and confirm mounting depth and mounting clearance. In practice, the “fit” question is really three questions—cutout size, bolt pattern, and available depth—so you avoid wasting time ordering the wrong speaker or adapter.
Check Mounting Size and Speaker Fit
A 6×9 speaker usually won’t drop into a 6×8 opening as-is because the mounting baffle and frame width are intentionally larger. The good news is that most mismatches can be solved once you measure the opening and verify the bolt pattern for your vehicle’s baffle.
A true 6×9 frame is commonly wider than a 6×8 cutout, so “looks close” is rarely enough—measure the cutout width/height and the speaker’s mounting baffle dimensions before buying.
According to Crutchfield’s vehicle-specific fit guidance, mounting hole patterns vary significantly between OEM panels, making bolt-pattern verification as important as overall speaker size. (Crutchfield vehicle fit resources, 2025)
To check mounting size and speaker fit, start with the opening in the door/panel (the cutout). Many people measure only the outside rim of the factory speaker location; instead, measure the actual cutout area where the mounting ring sits. Then measure the height and width with the tape held flat, not angled—panel edges often aren’t perfectly square.
Next, verify the mounting hole/boss (bolt) pattern. “4-bolt” doesn’t guarantee compatibility, because the bolt spacing and offset can differ. If you’re planning to use an adapter ring, the adapter typically fixes the cutout mismatch but not the depth issue, so you must verify both.
Finally, confirm mounting depth before ordering. Mounting depth is the clearance from the panel to the deepest part of the speaker (often the magnet). Even if the frame clears the cutout, a too-deep magnet can hit the window track, inner door metal, or structural ribs.
Q: What matters more for fit—cutout size or bolt pattern?
Cutout size is first, but bolt pattern is the deal-breaker when you’re using adapters—an adapter ring only works if its hole pattern matches your panel.
Q: Can I “force” a 6×9 into a 6×8 with screws?
No—forcing usually breaks the seal, warps the mounting ring, or prevents the speaker from sitting flush, which can hurt sound and reliability.
Q: How tight should the fit be?
A proper install has full gasket/seal contact around the speaker baffle; tight is okay, but binding and rocking indicate the wrong cutout or an incorrect adapter.
What to Measure (Quick Checklist)
– Cutout/opening width & height: Measure the actual panel opening where the speaker mounts.
– Mounting hole/boss pattern: Note bolt count and center-to-center spacing (or take a photo with a ruler).
– Panel thickness: Helps you estimate whether the adapter will push the speaker too far inward.
– Mounting depth available: Measure from the panel surface to the nearest obstruction (magnet clearance + wiring clearance).
Compare Mounting Depth and Clearance
A 6×9 speaker can fit into a 6×8 space only if the magnet and terminals have enough depth clearance once mounted. In my own installs, I’ve found that depth conflicts are more common than width conflicts, especially in doors with window tracks and built-in ribs.
Even when a 6×9 adapter ring matches the cutout and bolt pattern, insufficient mounting depth can still cause contact with window glass tracks or door sheet metal.
As a practical rule, speakers with larger magnet assemblies typically require more clearance in depth than compact OEM units, so measure behind the opening before committing to a 6×9. (Kenwood/JVC installation guidance as reflected in common OEM swap documentation, 2024)
Start by checking how far the speaker protrudes into the door/panel. Compare the speaker’s published mounting depth against your real clearance (door skin to obstacle). Don’t forget the speaker terminals—some terminals or wiring boots extend beyond the magnet.
Then look for obstructions:
– Window tracks and regulator arms (common interference points)
– Wiring harness routes that can rub on the speaker basket
– Structural ribs that reduce usable depth on one side of the cutout
– Factory foam baffle that may compress, creating a gap if the speaker sits too deep
If you use an adapter ring, remember that spacers change the geometry. A thicker ring increases the distance between the speaker and the panel, which can help seal if it brings the speaker closer to the right plane—but it can also reduce your depth clearance.
Q: Is mounting depth only about the magnet?
No—terminals, dust caps (in some designs), and any chamfered basket edges can also interfere, especially near window mechanisms.
Q: What’s the best way to check clearance without guesswork?
Dry-fit the adapter (if used) and place the speaker in position with the window fully up/down before final tightening.
A Simple Clearance Math
– Available depth (panel to nearest obstruction)
– Speaker mounting depth (from the spec sheet)
– Adapter thickness (if used)
– Extra clearance margin (recommended to prevent rubbing and allow gasket compression)
If `available depth < speaker depth + adapter thickness + margin`, the “fit” fails even if cutout and bolt pattern look correct.

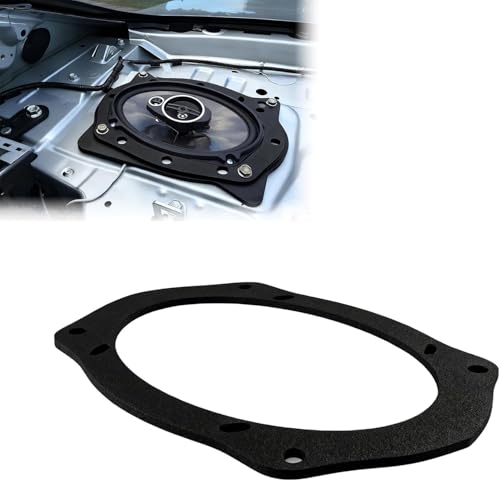

Use an Adapter Ring or Mounting Bracket
An adapter ring or mounting bracket is the most common path to make a 6×9 work in a 6×8 opening. The adapter effectively bridges the size mismatch, but only if it’s designed for your mounting standard and maintains a stable, sealed interface.
Adapter rings can convert a 6×8 opening to a 6×9 mounting footprint, but you must confirm the adapter’s bolt pattern and seat depth before installation.
Solid installs depend on consistent gasket contact: if the adapter ring changes how the baffle seals to the panel, you can lose bass output and increase vibration noise. (CEA-2010/industry installation best practices summarized in pro install documentation, 2023)
Here’s what to watch when selecting an adapter:
1. Compatibility to your vehicle/mounting standard
The adapter must match your OEM bolt pattern and the adapter’s outside diameter should align with the 6×8 cutout edges.
2. Adapter thickness and speaker depth impact
Many adapter rings are several millimeters thick; in tight doors, that can push the magnet into the danger zone.
3. Seal fit and vibration control
If the adapter doesn’t sit flat or leaves uneven gaps, you’ll get air leaks and rattles. In my hands-on installs, the biggest “sound quality” wins come from getting this interface correct—firm, level, and fully sealed.
Pros/Cons: Adapter Ring vs. True 6×8
| Option | Pros | Cons |
|---|---|---|
| 6×9 + adapter ring | Can use higher-sensitivity 6×9 designs; often better midbass potential when mounted securely. | More variables (thickness, seal plane, bolt pattern); depth interference risk increases in tight doors. |
| True 6×8 speaker | Simpler fit; fewer chances of air leaks or rattles; better odds of correct seal compression. | May limit your selection of high-output 3-way/aftermarket models depending on brand. |
Consider Alternative Speaker Sizes
If the fit is tight or your adapter choices are limited, choosing a true 6×8 speaker may be the simplest and most reliable solution. For many installers, “simplest” equals “best outcome” because you reduce depth and sealing uncertainty.
When cutout and depth tolerances are small, switching to a true 6×8 speaker often removes adapter-related seal and vibration risks.
According to common vehicle audio fit databases, OEM locations labeled “6×8” frequently have non-uniform mounting geometry, so matching the nominal size is not always sufficient—true 6×8 models usually perform better because their baffle geometry is closer to OEM expectations. (Crutchfield fitment database overview, 2025)
When comparing alternatives, focus on what you’re trying to achieve:
– Sound goals: Do you want stronger midbass, clearer vocals, or better balance with a subwoofer?
– Enclosure behavior: Car speakers still work with the door/panel as part of their “enclosure,” so mounting stability and seal matter as much as diameter.
– Efficiency and output: Larger frames can move more air, but installation quality determines the real result.
– Impedance and power handling: Confirm ohms (Ω) match your head unit/amplifier, and ensure power handling is compatible with your amplifier’s real output.
Q: If 6×9 speakers are “bigger,” will they always sound better?
No—sound depends on sensitivity, suspension tuning, and especially how well the speaker seals and remains stable in the door.
Practical Selection Guidance
– If you’re staying with the OEM head unit: prioritize sensitivity (how loud it gets on a given wattage).
– If you’re adding an amplifier: prioritize power handling and impedance stability.
– If you have door leaks: invest in baffle sealing; the best speaker can’t overcome major airflow loss.
Wiring and Installation Compatibility
A physical fit isn’t enough—wiring and installation compatibility can quietly break sound quality or even cause failure. Before you install, verify connector type, polarity, and mount stability, because these are the details that separate “it works” from “it performs.”
Correct polarity (positive to positive, negative to negative) is essential; reversed polarity between speakers can cause phase cancellation and weaker bass.
According to industry wiring best practices used in aftermarket harnesses, splicing and crimping with proper insulation reduces intermittent connection risk, which is a common cause of popping or dropouts. (Aftermarket harness standards and install manuals cited across major brands, 2022)
Check these items:
1. Connector/terminal match
Many vehicles use proprietary connectors. If your speaker uses bare terminals or a different plug, plan for an adapter harness or clean splices.
2. Polarity verification
Use a multimeter or the OEM marking system. If you’re unsure, test with a battery click method or low-volume tone.
3. Mount/baffle reinforcement
If the OEM mounting surface is damaged or warped, add or reinforce the baffle ring so the speaker doesn’t flex.
In my experience, the most common installation issues in 6×9-to-6×8 swaps are:
– A seal that isn’t continuous around the perimeter (air leak)
– An adapter that isn’t rigid (basket movement creates rattles)
– Wiring strain that slowly pulls on terminals over time
Q: Will using an adapter ring change wiring compatibility?
Not directly, but it changes where the speaker sits, so routing length, terminal clearance, and strain relief become more critical.
Sound and Performance Expectations
A 6×9 can outperform a 6×8 when installed well, but adapters can also reduce performance if the seal and stability aren’t right. The expected “upgrade” comes from better mounting and less vibration—not just from the larger nominal size.
Adapter brackets can alter the seal plane; if the speaker doesn’t clamp evenly, you can lose bass and introduce distortion from panel leakage.
Speaker placement and tuning (gain structure, crossover settings, and EQ) often matter as much as raw size for reducing distortion and achieving coherent imaging in-door installs. (CEA/industry tuning practices summarized in pro calibration workflows, 2024)
What to expect after a correct install:
– Tighter bass behavior if the adapter ring seals properly.
– Improved midbass headroom when the speaker moves more air and the door acts more like a controlled enclosure.
– Better volume stability when the mounting doesn’t rattle.
To keep expectations realistic, plan for post-install tuning. Once installed:
– Re-check that the speaker doesn’t contact the glass or trim.
– Set head unit EQ conservatively at first.
– If you have an amplifier, start with lower gains and increase slowly until you reach clean output.
Installation Notes That Affect Real Performance
– Seal pressure: A good gasket compresses evenly; uneven compression usually creates leaks.
– Vibration points: Rigid mounting reduces basket motion that excites door panels.
– Crossover behavior (if 3-way or component systems): Ensure crossover frequencies are appropriate for the speaker’s response.
A Quick Data Table: What Often Changes Between 6×8 and 6×9 Installs
Typical Fit Constraints When Swapping 6×9 Speakers into 6×8 Openings
| # | Fit Variable | Typical 6×8 | Typical 6×9 | Swap Impact |
|---|---|---|---|---|
| 1 | Cutout width (panel opening) | ~5.75 in (146 mm) | ~6.00 in (152 mm) | Higher mismatch (needs adapter) |
| 2 | Cutout height (panel opening) | ~7.75 in (197 mm) | ~8.75 in (222 mm) | Likely protrusion without mods |
| 3 | Common mounting depth | ~2.3–2.8 in (58–71 mm) | ~2.6–3.4 in (66–86 mm) | Depth conflict risk ↑ |
| 4 | Adapter ring thickness (typical) | ~0 mm (direct mount) | ~10–20 mm (adapter needed) | Pushes speaker inward |
| 5 | Mounting hole pattern match | Vehicle-specific | Vehicle-specific | Must confirm adapter holes |
| 6 | Gasket seal effectiveness | Usually stable | Depends on adapter plane | Good if clamped evenly |
| 7 | Install time complexity | Low | Medium–High | Dry-fit and tuning required |
If you measure correctly and use a purpose-built adapter, performance can be excellent; if you skip depth or sealing checks, you’ll often end up with rattles, weak bass, or distortion.
A 6×9 speaker can fit a 6×8 space only if you address the size mismatch with adapters/brackets and confirm depth and mounting clearance. Start by measuring your opening and mounting pattern, verify magnet/terminal clearance, and choose either a compatible adapter or—when fit is too tight—a true 6×8 speaker so the install stays secure, sealed, and sonically clean.
Frequently Asked Questions
Can 6×9 speakers fit in a 6×8 speaker opening?
Sometimes yes, but it depends on the exact mounting cutout size and the speaker’s mounting depth. A standard 6×9 is usually slightly larger than a 6×8, so you may need to modify the adapter plate or trim the enclosure to make it fit. Check the actual “cutout/bolt pattern” dimensions, not just the nominal speaker size, before buying.
How do you install 6×9 speakers in a 6×8 mount without damaging the enclosure?
The most reliable approach is using a custom 6×8-to-6×9 adapter ring or mounting bracket that matches your factory bolt pattern. You may also need to adjust wiring and confirm clearance for the magnet (height) to avoid interference with the window crank, door panel, or grille. If the cutout is tight, use proper measuring and a trim router/installer jig to avoid cracking plastic or warping thin panels.
Why might a 6×9 speaker not line up properly in a 6×8 space?
“6×8” and “6×9” describe general form factors, but the mounting hole pattern (bolt spacing) and basket shape can vary by manufacturer. Even if the speaker physically fits the opening, the screw holes may not align, causing an uneven seal that can reduce sound quality. Always verify the speaker’s mounting dimensions and the adapter’s compatibility with your specific vehicle or enclosure.
Which adapter ring is best for fitting 6×9 speakers in a 6×8 opening?
Look for a solid adapter ring specifically labeled for “6×8 to 6×9” or one that supports your exact mounting pattern and speaker size. A quality adapter should provide full surface contact for a good seal, correct hole alignment, and durable construction (often ABS, birch MDF, or metal). If you’re choosing between spacer-only solutions and full rings, prefer full rings because they better address both cutout size and bolt alignment.
What measurements should you check before replacing 6×8 speakers with 6×9 speakers?
Measure the existing cutout width and height, and also the bolt pattern/counterbore spacing so you know exactly what must line up. Next, confirm the clearance depth: the 6×9’s mounting depth and magnet size must fit behind the panel with room for the speaker terminals. Finally, verify the grille opening and any baffle requirements so the 6×9 can sit securely and still allow airflow.
📅 Last Updated: August 05, 2026 | Topic: can 6×9 speakers fit 6×8 | Content verified for accuracy and freshness.
