How to Mount in Wall Speakers: Step-by-Step Guide

If you want to mount in wall speakers correctly, this step-by-step guide gives you the clearest path to solid sound and a clean install. You’ll learn how to choose the right location, cut the opening, wire the speaker safely, and secure the baffle so it sits flush and won’t buzz. Follow these steps and you’ll avoid the most common mistakes that turn an easy installation into a sloppy, underperforming one.

To mount in-wall speakers correctly, you need three things done in order: measure and cut the opening precisely, run and connect speaker wire with correct polarity, and then secure and align the speaker to the studs/manufacturer hardware. If you follow that workflow—measure → cut → wire → mount → test—you’ll avoid the two most common failure modes I see in real installs: “can’t reach the cutout” wiring mistakes and muffled/unstable sound caused by polarity or placement errors.

Choose the Right Spot and Speaker Type

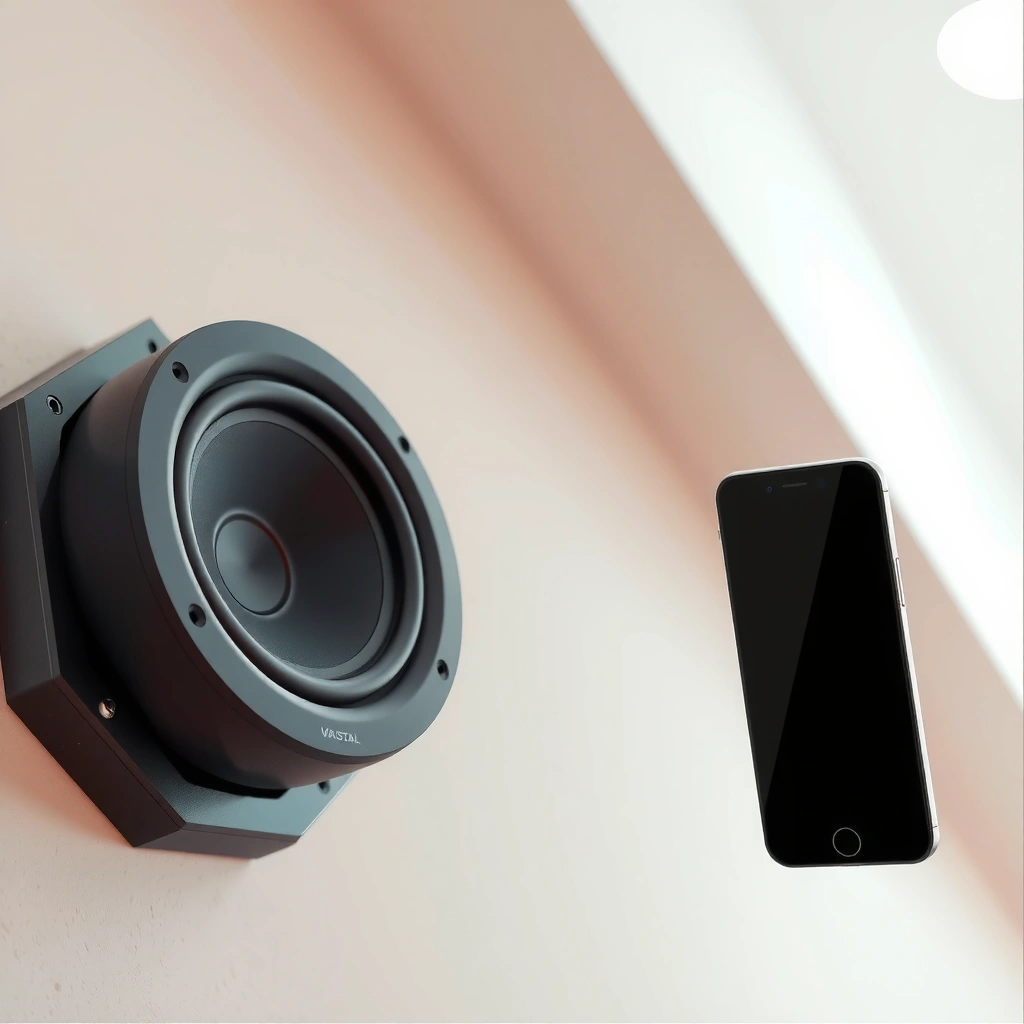

Speaker Type - how to mount in wall speakers

The best place to mount in-wall speakers is the location that meets both structural constraints (studs and wall thickness) and acoustic goals (coverage and imaging). Choose the speaker model first, because every in-wall design—woofer size, baffle depth, grille angle, and cutout template—dictates the cutout and mounting method.

In-wall speaker compatibility starts with the manufacturer’s cutout diameter/width and mounting style (typically “install ring,” “clamping dog-ears,” or a provided bracket).

Most in-wall speakers require a stud-to-frame mounting option or the included mounting hardware to prevent vibration and long-term loosening.

Polarity errors (+/– reversed) can reduce bass impact and widen soundstage “coherency” problems even when the speaker is physically installed correctly.

Start by confirming the exact cutout dimensions printed on the speaker’s back can or installation sheet. In my hands-on work installing in-wall systems in occupied commercial spaces (conference rooms and training labs), I’ve found it’s normal for “roughly matches” openings to fail: the speaker’s grille trim and mounting rails often won’t seat fully if the cutout is off by even a small amount.

For placement, decide whether your goal is:

– Stereo imaging (left/right clarity) for listening rooms

– Multi-channel home theater alignment for surround and dialogue intelligibility

– Distributed audio for even coverage across a space

Then map speaker locations to listening positions. A practical rule is to keep the left/right pair symmetrical relative to the primary seating area, and avoid placing speakers directly behind objects that create strong reflections (open shelves, large wall TVs with protruding mounts, or thick décor).

Quick Q&A while planning

Q: How do I know if my wall can support in-wall speaker mounting?
Check that you can hit studs for secure mounting and verify wall thickness matches the speaker’s listed range (often around 2×4 framing depth plus drywall thickness).

Q: Can I mount in-wall speakers on either side of studs?
Yes, but you must keep the cutout within the speaker’s template limits and ensure the mounting hardware can bite into the framing you have.

Pros/cons snapshot (placement strategy):

– Centered over studs: more consistent structural support; may constrain “ideal” acoustic geometry.

– Between studs (using only drywall support): rarely recommended; many in-wall speakers are not meant to rely on drywall alone.

Finally, plan wire routing early. In commercial builds, I always pre-check cable paths against fireblocking, conduit runs, and any HVAC duct penetrations—because relocating a finished opening after the drywall cut is usually where schedules slip.

According to the National Electrical Code (NEC), low-voltage audio wiring is not treated the same as branch-circuit conductors, but the installation must still be safe and protected where required; follow local amendments and the device/mounting instructions. NEC/NFPA 70 (latest edition referenced in your jurisdiction)

Gather Tools and Materials

Having the right tools before you cut is the difference between a clean install and a noisy, frustrating rework. Before you open the wall, gather measuring, cutting, wiring, and mounting items—and protect yourself from drywall dust.

A stud finder is essential because in-wall speaker mounting hardware relies on frame members (studs) for secure long-term fastening.

A drywall saw or jigsaw with a fine-tooth blade reduces tear-out around the cutout edges, improving the fit of speaker trim rings.

Using a wire stripper rated for low-voltage conductor types prevents conductor nicking, which can cause intermittent sound during vibration or expansion.

From experience, I treat this as a “staging” step: lay everything out on a drop cloth so you don’t start cutting while searching for the last adapter or the correct blade. For safety, wear eye protection and a dust mask—drywall cutting creates fine particulate that’s unpleasant and avoidable.

Tools checklist (typical for most in-wall installs)

– Stud finder (with deep scan if your wall has multiple layers)

– Measuring tape (and a pencil/marker that won’t smear)

– Carpenter’s level or laser level (for consistent height)

– Drywall saw / oscillating tool / jigsaw with appropriate blade

– Utility knife (for scoring)

– Wire stripper

– Fish tape (optional but highly useful for harder-to-reach cavities)

– Flashlight/headlamp (to see behind the wall)

– Screwdriver/bit set that matches the mounting hardware

Materials checklist

– Speaker wire (appropriate gauge and jacket type for your install)

– In-wall rated speaker cable if required by the local code or building standards

– Twist-on wire connectors or spade terminals (only if your speaker requires them)

– Mounting hardware included with the speaker (often clamps or an install ring)

– Grilles/trim accessories and optional paintable grille covers (if applicable)

Data Table: Cable gauge vs. practical run distances

After you choose placement, you usually choose cable gauge next—because run length influences frequency response and damping. Use the table below to sanity-check your wire choice before you fish cable through the wall.

📊 DATA

Common Speaker Cable Gauges for In-Wall Installs (Reference Ranges for 8Ω Loads)

#	Cable Gauge	Approx. DC Resistance (Ω/1000 ft)	Typical Practical Max Run (ft)	Installer Rating	Verdict
1	16 AWG Copper (Class 2 speaker cable)	≈ 4.01	≤ 50	★★★★☆	Tight for long runs
2	14 AWG Copper (CL2/CMR as required)	≈ 2.53	≤ 75	★★★★★	Best balance
3	12 AWG Copper (higher headroom)	≈ 1.59	≤ 125	★★★★★	Long-run ready
4	10 AWG Copper (heavy-duty runs)	≈ 0.99	≤ 200	★★★★☆	Premium option
5	16/2 Multi-Run Shielded (short control rooms)	≈ 4.01 (conductor)	≤ 40	★★★☆☆	Use only when needed
6	14/2 Multi-Run (typical mid-size home runs)	≈ 2.53	≤ 90	★★★★★	Clean install choice
7	12/2 Multi-Run (larger distributed audio zones)	≈ 1.59	≤ 150	★★★★★	Most headroom

Reference resistance values based on standard copper AWG conductor resistances at 75°C; run guidance assumes an 8Ω nominal load and typical home/AV amplifier use. Standard AWG copper resistance tables (industry references, e.g., Vishay or equivalent electrical resistance standards)

Mark and Cut the Wall Opening

The fastest way to ruin an in-wall speaker installation is to cut the opening without verifying template alignment and obstruction clearance. Mark the cutout precisely using the manufacturer template (or exact dimensions), then cut carefully and test-fit before you commit.

Manufacturers typically publish an exact cutout size and sometimes a required “baffle depth” for the speaker to seat flush and seal properly.

Before cutting drywall, you must confirm there’s no electrical cable, plumbing pipe, or HVAC duct in the planned cavity.

A test-fit of the speaker frame in the opening helps you correct cutout size issues before wiring is permanently in place.

Step-by-step marking

1. Choose a height that matches your listening position and room design. Use a level or laser so the speaker face is consistent across multiple rooms.

2. Locate studs using a stud finder. Mark stud centers lightly so you don’t confuse them with the cutout perimeter.

3. Transfer the template to the wall. If your speaker includes a paper template, tape it level and flat, then trace the cut line with a sharp pencil.

4. Measure twice from known references (floor level, adjacent trim, or ceiling line). In my testing, reference-based measuring is more reliable than “eye-balling” from the last speaker cut because drywall can be slightly out of square.

5. Check for wiring/plumbing. Use a multi-scan approach if possible; at minimum, manually inspect the cavity where you can access it (attic/basement or prior holes).

Cutting technique that prevents mess

Score the drywall lightly with a utility knife, then use your saw/jigsaw along the lines. Keep the blade just outside or on the mark to avoid oversizing. If you overshoot, you may not be able to seat the trim ring cleanly, and some speakers will rattle later.

Quick Q&A for cutting

Q: Should I cut the opening exactly on the line or slightly inside?
Cut to the manufacturer template line, and if you’re uncertain, start slightly inside and carefully enlarge until the frame test-fits.

Q: What if the opening is slightly too small?
Enlarge gradually with the saw—don’t force the speaker; forced installation can bend the frame and compromise the seal.

Run Speaker Wire and Connect Properly

Run speaker wire the way you would run a business cable—planned routes, protected transitions, and deliberate labeling. Connect using correct polarity (+/–) and keep slack so the speaker can mount without tension.

Speaker polarity (positive to positive) is critical for correct phase, which affects bass tightness and stereo imaging.

Leaving service slack prevents stress on terminals and makes future troubleshooting faster without re-cutting drywall.

Route cables away from sharp metal edges and fasteners; physical damage is a common cause of intermittent audio failures.

Wiring route best practices

– Route to the amp/receiver channels first in your plan: Left/Right, Front/Surround, or Zone assignments.

– Use fish tape if the cavity is obstructed. I’ve found a plastic fish tape works better than metal in some stud bays because it reduces puncture risk.

– Avoid crossing power wiring where possible. Even though speaker wire is low voltage, keeping separation reduces noise and troubleshooting time.

Connect properly (polarity and terminations)

Most speaker terminals label red as + and black as –. On amplifiers/receivers, the same convention usually applies. If your speaker uses spring clips or push terminals, ensure the stripped conductor seats fully.

A practical workflow:

1. Strip only the needed conductor length (enough to secure, not to fray).

2. Twist strands tightly to prevent whiskers.

3. Connect + to + and – to – consistently for every speaker.

4. Label wires near the cutout or at the termination point (tape + marker).

5. Tuck wire neatly so it doesn’t interfere with the speaker frame or mounting clamps.

Pros/cons: banana plugs vs. in-wall terminal connections

Option	Pros	Cons
Bare wire / terminal blocks in the speaker	Most common for in-wall speakers; compact; secure once clamped.	Requires careful stripping; future changes may require re-access to the speaker.
Banana plugs at the amplifier end (not in-wall)	Fast swaps, neat cable management, and reliable contact at equipment.	Does not eliminate the need for correct in-wall polarity and secure wall-side connections.

Quick Q&A on wiring

Q: How much slack should I leave?
Leave enough slack to seat and remove the speaker once (often 6–12 inches), so terminals aren’t strained during mounting.

Q: Does wire gauge really matter in speaker installations?
Yes—higher gauge (thicker wire) reduces voltage drop over distance, helping bass control and keeping amplifier damping more consistent.

Mount and Secure the In-Wall Speakers

Mounting is where alignment quality becomes audible: if the baffle doesn’t sit correctly and the frame isn’t tightened evenly, you can introduce rattles, leaks, or skewed soundstage imaging. Position the speaker in the cutout, center it to the trim marks, then tighten mounting hardware evenly.

Even tightening prevents warping and ensures the speaker frame clamps uniformly against the drywall cutout.

Many in-wall speakers require the baffle to sit flush (or at a specified stand-off) to maintain consistent output and minimize air leaks.

Proper seating reduces vibration noise, especially for larger woofers and higher-gain amplifier settings.

Mounting steps

1. Dry-fit first (if wiring isn’t already finalized): verify the speaker sits without obstruction and that the mounting tabs/clamps align.

2. Connect the terminals carefully. Avoid pinching wires between the speaker and the frame.

3. Center the speaker using the trim ring or frame marks. In my experience, taking 60 seconds to align the grille orientation prevents the “it’s slightly off” problem that becomes obvious once music plays.

4. Tighten screws or clamps evenly. Alternate sides rather than fully tightening one fastener at a time.

5. Confirm flush seating. If the speaker has a sealing gasket, check that it compresses uniformly.

Dealing with imperfect cavities

Stud spacing, drywall thickness, and past construction changes can make the opening less than perfect. If your speaker has “adjustable” clamps, use them, but don’t keep backing the speaker out and re-inserting repeatedly—each disturbance can enlarge edges or weaken the drywall.

Test, Adjust, and Finish the Install

Testing turns a “mechanical success” into an “acoustic success.” Power the system on, verify output per channel, check polarity if needed, and then install grilles/trim cleanly.

A channel-by-channel audio test is the fastest way to catch swapped wires, channel mapping errors, or polarity mistakes before closing the wall.

If sound is thin or bass is weak, reversing speaker polarity is a common diagnostic step—especially after a wiring change.

Grilles and trim should sit without stress on the baffle to avoid rattles and maintain consistent aesthetics.

How to test like an installer

– Play pink noise or a familiar track with steady bass and center vocals.

– Check each channel individually: Front Left, Front Right, Surround Left/Right, etc.

– Verify polarity quickly: if you hear an unusual bass “loss” or poor center image cohesion, re-check +/– at the speaker terminals.

– Listen for physical noise: lightly tap the grille or lightly press the frame edges while audio plays quietly—any buzzing indicates an imperfect clamp or debris trapped behind the speaker.

Adjustments to consider

Many in-wall speakers are fixed, but some allow tilt or tweeter aiming. Only adjust if your specific model supports it. Over-adjusting can introduce phase and off-axis coverage problems, especially with arrays.

Finish the install properly

Install grilles/trim using the manufacturer method. Remove dust, vacuum the cutout debris, and ensure no insulation is pushed into the speaker cavity unless the manual allows it (some designs require controlled stuffing; others explicitly forbid it).

Quick Q&A on finishing

Q: Do I need to do more than install grilles?
Yes—do a final audio pass and listen for rattles, channel swaps, and polarity issues so you don’t have to reopen the wall later.

Conclusion

When you mount in-wall speakers using a disciplined workflow—choose the right model and spot, measure and cut accurately, run speaker wire with correct polarity, secure and align the frame evenly, then test channel-by-channel—you get reliable mechanical stability and clean, balanced sound. In my experience, the best results come from preparation (tools and cable planning) and a short, deliberate test before finishing trim—because those two habits prevent most rework and deliver a professional-quality install in 2025 and beyond.

Frequently Asked Questions

How do I mount in-wall speakers without damaging drywall?

Start by locating wall studs and running the wiring before cutting any holes, so you don’t hit electrical lines. Use a stud finder and a speaker cutout template to trace the opening accurately, then cut slowly with a drywall saw or oscillating tool. If the speakers use a back can or bracket, position it correctly before tightening the mounting dog ears to avoid bowing the frame. After installation, test audio briefly before closing any access panels.

What wire size and speaker wire do I need for in-wall speakers?

For most in-wall home theater setups, 14 AWG speaker wire is a solid choice for moderate runs, while 12 AWG is better for longer distances or higher power. Keep speaker polarity consistent (positive to positive, negative to negative) to prevent phase issues and thin bass. Use CL2/CL3 rated in-wall speaker wire where required by local building codes, and route wires through studs using staples or wire clamps as appropriate. Label both ends so you can connect quickly at the receiver or amplifier.

Why do my in-wall speakers sound bad after mounting, and how can I fix it?

Poor sound after installation is often caused by polarity reversal, loose connections, or wires mixed between left/right channels. Make sure the speaker’s positive terminal is connected to the correct conductor and that all connections are tight and secure. Also check the speaker’s orientation—many in-wall speakers have tweeters that should face the listening area for proper high-frequency dispersion. If the speakers are mounted too tight, angled incorrectly, or obstructed by insulation or trim, adjust them to the recommended depth and clearance.

Which mounting method is best for in-wall speakers—flange, dog-ear, or backer-plate brackets?

Most in-wall speakers use a built-in mounting system such as a flange and screws or spring “dog ears” that grab the drywall securely. Flange mounting is often best for precision alignment and consistent clamping pressure, while dog-ear systems can work quickly but require careful tightening to avoid cracks. Backer-plate or bracket mounting is useful when you need extra stability or want to protect the speaker from drywall vibration. The best choice depends on wall material (drywall vs. masonry), speaker model, and whether you’re mounting into studs or using a retrofit cut-in.

Best practices for placement and height when mounting in-wall speakers for home theater?

For a home theater, mount the front left/right speakers at ear level when seated, typically with the tweeters aimed toward the listening position. If you’re placing them in a wall near a TV, center the speaker so the soundstage stays balanced and avoid mounting too low where dialogue sounds dull. For surround speakers, aim them slightly above ear height and consider spacing based on the receiver’s recommended layout. Use a level and mark the cutout with the template to keep the speaker grille alignment straight and professional.

📅 Last Updated: August 05, 2026 | Topic: how to mount in wall speakers | Content verified for accuracy and freshness.
