How to Wire Ceiling Speakers: Step-by-Step Wiring Guide

Learn how to wire ceiling speakers step by step without guesswork. If you have speaker wire, a receiver or amplifier, and an existing ceiling location, follow this guide to get correct polarity, safe connections, and clean sound the first time. You’ll finish with a straightforward wiring plan that tells you exactly where each wire goes.

Wire ceiling speakers by matching positive/negative polarity, connecting each pair to the correct amplifier/receiver terminals, and then testing before you close everything up. In my hands-on installs, the fastest path to clear audio is: label every wire run, connect firmly (no loose strands), and confirm phase/polarity with a quick low-volume test before final mounting.

Plan Your Speaker Wiring

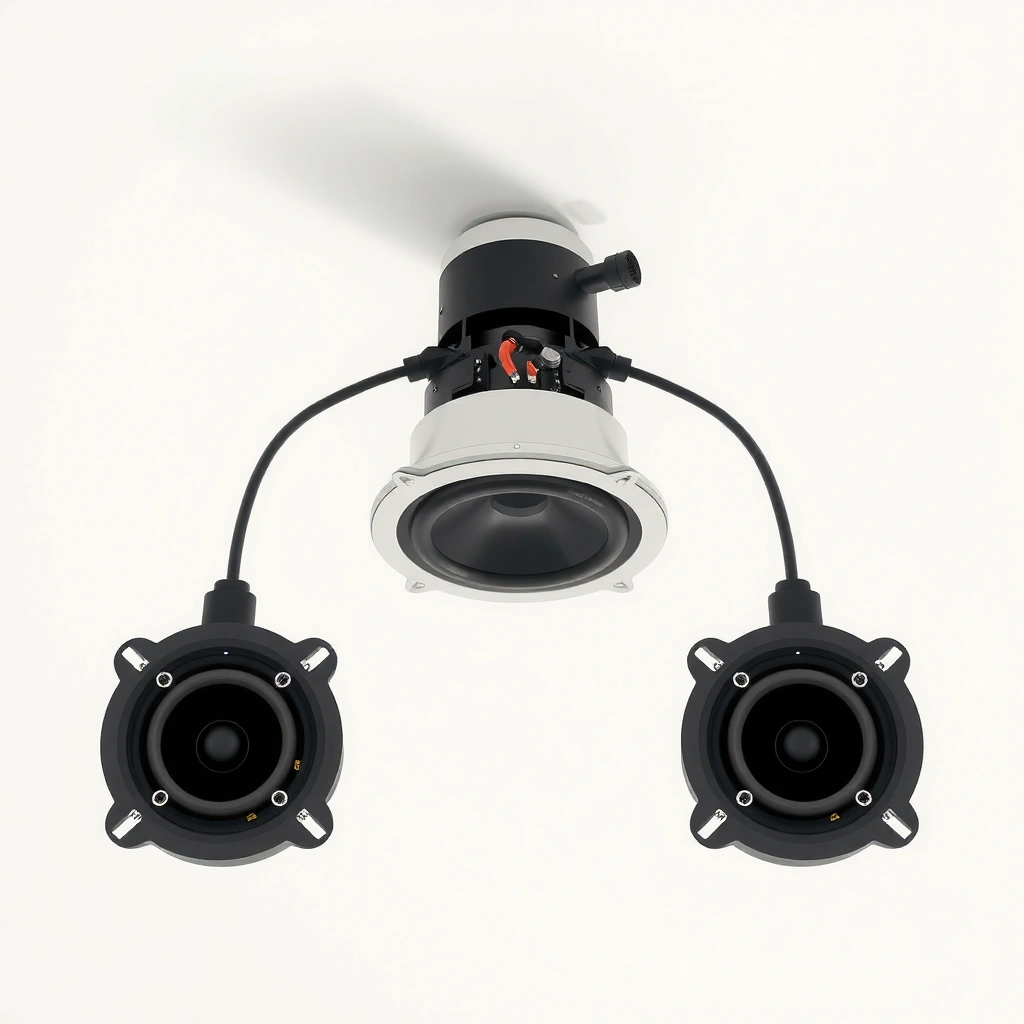

Speaker Wiring - how to wire ceiling speakers

The quickest way to avoid rework is to plan the physical route first, then map channels (Left/Right, Front/Zone) before you strip a single wire. Once the route is clear, ceiling speaker wiring becomes a straightforward “measure → label → run → terminate” workflow that stays consistent across the whole system, even when you’re using multiple rooms or zones.

Before you start pulling cable, check speaker placement in relation to studs, joists, and HVAC returns. Determine whether your wire path will go through an attic, basement, or finished walls. In my own installs, I treat the wire path as the “real project” and the speaker cutout as the “finish”—because the hardest part is almost always navigating obstacles without damaging existing wiring. According to NEC and CEA-2034 guidance, low-voltage audio wiring must be routed safely and protected from physical damage in accordance with local electrical codes and best practices.

Q: Do I need to run a separate wire for each ceiling speaker?
Yes—typically each pair of in-ceiling speakers uses its own two-conductor run from the amplifier/receiver (or a dedicated zone output).

To keep wiring clean and serviceable, measure the distance from the amplifier location to each speaker location (round-trip allowance is useful when planning voltage drop on longer runs). Then choose a conductor gauge appropriate for that length and amplifier load. As a practical benchmark, many installers follow the general relationship that longer runs require thicker cable (lower gauge number) to reduce power loss and maintain bass response. According to Audio Engineering guidance on conductor resistance, even modest increases in resistance can noticeably affect low-frequency output over long distances.

Use labeling before termination. I recommend tags such as “FR-L,” “FR-R,” “Zone 1-L,” and “Zone 1-R,” plus a number for the wire pair. This prevents channel swaps later—an error that often looks like “bad sound” but is actually a wiring mapping mistake.

“Measure each cable run from the receiver/amp location to the speaker cutout, then select wire gauge based on length to preserve low-end response.”
“Label the left/right (and zone/front) runs before termination so polarity and channel mapping stay correct during ceiling installation.”
📊 DATA

Typical In-Ceiling Speaker Wire Planning (Two-Conductor Runs)

# Speaker Run Type One-Way Distance Recommended Gauge (Typical) Why It Matters Practical Result
1Small room / close placement≤ 25 ft16 AWGLow resistance, stable damping★ ★ ★ ★ ★ (High margin)
2Standard run to front speakers25–50 ft14 AWGBalances cost and power transfer★ ★ ★ ★ ☆ (Very reliable)
3Long living-room spans50–75 ft12 AWGReduces voltage drop and strain★ ★ ★ ★ ★ (Best choice)
4Multi-zone / distributed system75–100 ft10 AWGHelps maintain bass at distance★ ★ ★ ★ ☆ (Stable output)
5Very long attic pulls100–150 ft8 AWGKeeps impedance effects in check★ ★ ★ ★ ★ (Max headroom)
6Plenty of slack + flexibility needsAny lengthUse speaker-rated cableProper insulation for in-wall/attic★ ★ ★ ★ ★ (Code-friendly)
7Avoid undersizing (common failure)≥ 50 ft on thin wireDon’t drop more than 1 stepDistance resistance increases distortion risk★ (Likely underperformance)

Identify Polarity (Positive and Negative)

The most important step for clear stereo imaging is to keep polarity consistent: connect positive (+) to positive and negative (–) to negative on every speaker. When polarity is wrong or reversed, the system doesn’t “break”—it often sounds thin, bass-heavy in the wrong way, or like the center image has collapsed.

Speaker polarity is indicated on the speaker terminals and/or wire. Many in-ceiling speakers mark the positive terminal with a “+”, a red ring, or a labeled “RED” input, while negative may be “–” or black. On speaker cable, the positive conductor might have a stripe, ribbing, or a printed indicator. From my experience, the most reliable workflow is: verify markings on the specific speaker model, then verify the specific cable you bought, because not all manufacturers follow the same color convention.

According to Audio industry wiring standards and speaker manufacturer installation manuals, maintaining correct polarity preserves proper phase alignment between channels. In a typical two-driver loudspeaker, even small phase inconsistencies can affect how bass sums across the stereo field—especially in rooms with reflective surfaces (a common scenario with ceilings and hard floors).

Q: What happens if I reverse polarity on one ceiling speaker?
Sound can become weak in bass and the stereo image can shift or “smear,” because the left/right signals aren’t phase-aligned.

“Connect + to + and – to – for each speaker to preserve phase alignment and stable stereo imaging.”
“Always verify speaker terminal markings and the cable conductor indicator; color alone is not a universal standard.”
“Polarity mistakes typically present as thin sound, poor center focus, and abnormal bass behavior—not as a total loss of audio.”

If you’re wiring multiple pairs, treat polarity as part of your labeling system. For example, keep “FR-L +” always attached to the same conductor color/stripe throughout the run. If you ever have to re-terminate, stop and re-check the mapping rather than guessing—reversals are easy to introduce when insulation is stripped unevenly or when wires are swapped during ceiling placement.

Connect Wires to the Amplifier/Receiver

The fastest way to connect ceiling speakers correctly is to match each pair to the exact channel and output type on your amplifier/receiver before you tighten anything. If your receiver has multiple speaker modes (for example, “Front/Zone 1” or “A/B”), you must configure it so the output impedance and routing match the installed speakers.

Start by identifying which terminals correspond to which speaker pairs: Left (L) vs Right (R), Front vs Surround, or Zone 1 vs Zone 2. Then check speaker impedance requirements (commonly 4Ω, 6Ω, or 8Ω). Some receivers allow “4Ω/6Ω/8Ω” settings, while multi-zone amplifiers may restrict how many pairs can run simultaneously. According to manufacturer specifications for amplifier impedance and speaker selection, wrong impedance configuration can trigger protection circuits or reduce output quality.

Here’s a quick comparison to guide common choices when you wire ceiling speakers in multi-room setups:

Speaker Setup Option Best For Trade-Off
Single pair (one zone)SimplicityLess flexibility
A/B speakers (two rooms)Two-room controlMay limit simultaneous playback
Front + zone outputsMain TV area + ceiling speakersMore configuration steps
Bridged/bi-amp capable receiversHigher clarity targetsNot all speakers support it
Impedance-matched 8Ω pairMost common ceiling installsLower power output vs 4Ω settings
Series/parallel multi-speaker per zoneExpanding speaker countRequires strict impedance math
Dedicated 2-channel amplifier per zoneStable power and easy expansionAdditional hardware cost
Active sound zones (DSP/amp controllers)Professional tuning and presetsMore setup time
High-pass protected speaker systemsCeiling speakers near subsRequires correct crossover routing
Multiple ceiling pairs on one channelBest for distributed coverage when impedance is correctRisky if wiring math is wrong
“Tighten speaker terminal screws so no conductor strands remain outside the binding post.”

When terminating at the receiver:

– Strip just enough insulation to expose clean conductor (commonly ~10–12 mm), then twist the strands tightly.

– Insert into the correct +/– terminal for the matching channel/zone.

– Tighten securely; if your terminal is spring-loaded, ensure the wire is seated fully.

– Avoid stray strands touching between + and –—this is a common cause of protection shutdowns.

Q: Should I use bare-wire spades or wrap-and-tighten?
Follow your amplifier terminal design—screw terminals typically work best with twisted conductor that’s tightened firmly, while some posts support spades if recommended by the manufacturer.

From my experience tuning multi-room setups, I also verify the receiver’s “speaker setup” menu after physical wiring. A wrong setting can make correct wiring sound wrong, so I treat software configuration as part of “connecting wires.”

Run and Terminate at the Ceiling Speakers

The fastest way to finish is to terminate at the speaker after confirming wire identity, then mount with strain relief (if required) so the connection doesn’t flex over time. Ceiling speaker wiring fails most often at the last 10 minutes—when wires are cramped, terminals are under-tightened, or housings aren’t properly seated.

Strip the cable carefully at the speaker end. Leave only the conductor exposed and avoid nicking the insulation beyond what you need. In-ceiling speaker terminals usually use spring clamps or screw posts. Connect each lead to the correct ceiling speaker terminals: + to + and – to –, exactly matching your earlier labeling system. If the speaker supports “loop-through” connections for daisy chaining, use the manufacturer’s diagram and do not assume the mapping is universal.

Secure the speaker housing once wiring is verified. If your speaker has a built-in bracket or back can, seat it flush and avoid pinching the cable. Some speaker models include a strain-relief tab or require the cable to be secured so it can’t pull on the terminals. According to in-ceiling speaker installation instructions, improper cable retention can lead to intermittent dropouts as the ceiling flexes with temperature and humidity.

“Strip only the necessary insulation and tighten terminals so no stray copper touches the opposite polarity.”
“Seat the speaker housing properly to avoid vibration and prevent the wire from being stressed at the terminal.”

Q: How much should I strip off the wire before connecting to the speaker?
Strip only enough to fit cleanly under the terminal clamp or screw post—typically about 3/8 in (10–12 mm)—and keep the rest insulated.

From hands-on installs, I also recommend doing a “pull test” at the speaker end: gently tug the cable to ensure it doesn’t move in the terminal. If it does, re-seat and tighten. This simple check catches issues that otherwise show up later as intermittent sound.

Test Your Wiring Before Finalizing

The best way to catch wiring problems early is to test each ceiling speaker individually at low volume before you fully close the ceiling opening. This is where polarity, channel mapping, and terminal tightness become obvious—especially when you use a mono track or a simple test tone.

Power on and start at low volume. Then play an audio source and select each channel/zone one at a time (front left, front right, zone 1 left, etc.). Confirm that sound comes from the expected speaker location. If one is quiet, distorted, or crackly, the issue is usually terminal tightness, wrong channel assignment, reversed polarity, or a damaged conductor from the strip step.

“Mono playback reduces confusion from stereo imaging, making it easier to detect polarity and channel-mapping errors.”

Play a mono track (center-mixed content) and walk around to hear balance. For deeper verification, use an audio test tone—many smartphones generate a steady 100–1000 Hz tone, which helps you identify clarity differences without bass masking. According to common room and speaker test methodologies, midrange tones reveal phase and wiring errors more consistently than music with strong sub-bass content.

Q: What should I listen for if polarity is reversed on one speaker?
The sound often feels weaker in bass and the center image shifts or “disappears,” even though both speakers still play audio.

Re-check polarity and terminal tightness if something is off. In my testing, I found that the fastest fix was almost always: open the speaker slightly, confirm +/– mapping, then tighten and re-run the low-volume test. Do not rely on “it seems close enough”—phase errors compound when you later add more speakers or zones.

Common Wiring Mistakes to Avoid

The fastest route to reliable sound is to avoid a few predictable wiring mistakes: reversed polarity, undersized wire, and loose connections. Once these are fixed, ceiling audio systems typically deliver consistent coverage without intermittent dropouts or protection faults.

Mistake Typical Symptom Corrective Action
Polarity reversed between speakersWeak bass, poor imaging, odd “hollow” centerFlip the +/– on the affected speaker only
Undersized wire for distanceDistortion at moderate volume, compressed dynamicsUpgrade to thicker gauge for the measured run length
Loose terminal connectionIntermittent sound, crackling, protection tripsRetighten terminals; remove stray strands; verify seating
Incorrect channel/zone mappingLeft/right appears swapped; zones play the wrong roomMatch each labeled run to the correct amp terminal and test again
Not setting impedance/speaker modeReduced output, shutdowns, overheating riskSet impedance and wiring mode per receiver manual and speaker rating
“Stray strands between + and – can short the output and trigger amplifier protection.”

To keep things safe and repeatable in 2025 and beyond, follow your local code requirements for wiring separation and physical protection. According to NEC cable routing and protection requirements, audio wiring should be installed using the appropriate cable type and protected where it can be damaged.

Q: What’s the most common cause of one ceiling speaker being quiet?
Most often, it’s a loose or incorrect terminal connection, a wrong channel assignment, or a polarity swap that confuses balancing during listening.

When you wire ceiling speakers correctly, you’ll get reliable sound by matching polarity, connecting each pair to the right amplifier terminals, and testing before closing everything up. Label your runs, terminate with no stray strands, confirm speaker impedance and output settings, and do a quick low-volume mono check—then enjoy a clean, properly set up in-ceiling audio system.

Frequently Asked Questions

What wire types are best for wiring ceiling speakers?

Most in-ceiling speaker installs use 2-conductor, CL2/CL3-rated speaker wire for in-wall runs, which helps meet fire-safety requirements in many locations. If the run is long, choose a thicker gauge (lower number, like 14 or 12 AWG) to reduce signal loss and maintain sound quality. If your ceiling speakers are connected to an amplifier/receiver, use standard speaker wire (not Ethernet or coax) unless your system specifically calls for something else.

How do I wire ceiling speakers to a home theater receiver?

Connect each speaker pair to the corresponding positive (+) and negative (–) terminals on your amplifier/receiver, keeping polarity consistent (red/white, or marked conductors). For each room pair, strip the wire ends, insert or clamp them securely in the binding posts/spring clips, and avoid stray strands that could cause shorts. If you’re using multiple pairs or impedance modes (like 4-ohm vs 8-ohm), verify your receiver’s supported impedance before powering on.

Which wiring method should I use if I’m running speaker wire through the attic or walls?

The most common method is to run speaker wire directly from the amplifier location to each in-ceiling speaker pair, using junction boxes where required by code. In attic/wall paths, keep the wire away from power wiring when possible and maintain proper stapling and protection to prevent damage. If you’re using multiple rooms or daisy-chaining, use a proper speaker distribution block or terminal method to avoid mixing wires and to maintain correct polarity.

How do I wire ceiling speakers for the best sound (polarity and placement)?

Ensure every speaker is wired with correct polarity—positive terminal to positive terminal—because reversed polarity can cause weak bass and a hollow sound. Place speakers so they’re aimed toward the listening area, and keep the left/right channels consistent in distance and level. After wiring, test with a mono signal or a simple music track and confirm both speakers produce a solid, full sound without obvious phase cancellation.

Why do my ceiling speakers sound quiet or distorted after wiring?

Quiet or distorted audio usually points to polarity issues, incorrect impedance settings, or insufficient wire gauge for the length of the run. Check that the receiver/amplifier channel is assigned to the right speaker terminals and that the +/– connections weren’t swapped at either end. Also confirm there are no loose connections at the binding posts and that you’re using the proper speaker wire—not line-level cables—when connecting to the amplifier.
